Supporting Super-Fast Streaming and Continuous Data Connectivity

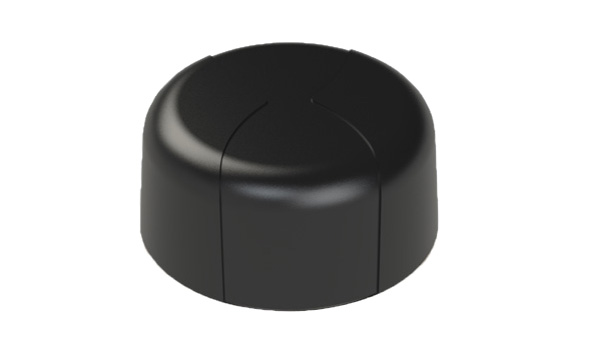

The Maxtena M1621HCT-LP-SM is a high-performance, low-profile antenna designed for the Iridium SFX, RUDICS, and SBD networks. It delivers exceptional pattern control, polarization purity, and high efficiency, all within a compact and rugged form factor.
With its omnidirectional design, the M1621HCT-LP-SM is quick and easy to install, regardless of location. It works seamlessly with a range of Iridium modems, including the Iridium 9601, 9602N, 9603N, 9523N, 9522B, and 9770 SFX.
For reliable connectivity, we recommend pairing it with the RockBLOCK 9602/9603/Plus for SBD services, or the RockREMOTE series for high-speed IP streaming and data transfer.
Built to perform in harsh conditions, the antenna is IP66-rated and optimized for land and maritime deployments. It’s ideal for drones requiring continuous data flows, as well as applications like video streaming and large sensor data transfers.

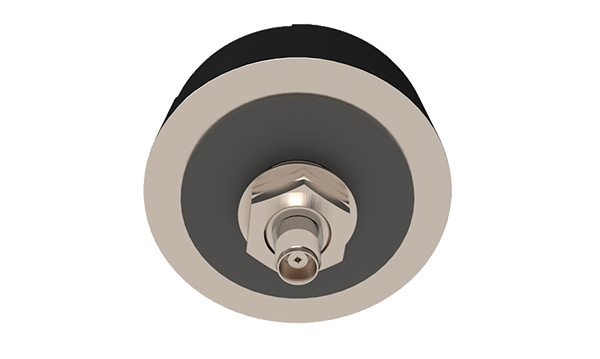

The M1621HCT-LP-SM features a TNC connector and can be through-hole mounted onto any surface.
- Iridium SFX 9770 compliant
- IP66 and ROHS compliant
- Ground plane independent
- High gain & low axial ratio
- Through hole mount
- Low profile
- Frequency: 1616 – 1626 MHz
- Polarization: RHCP
- Antenna Element Peak Gain: 2.5 dBic (typical)
- Peak Efficiency: 73%
- Beamwidth: 147Ëš
- VSWR: 2.0:1
- Impedance: 50 Ω
- Overall Dimensions: 38 mm (height) x 79.5 mm (diameter)
- Weight: 125g
- Operating Temperature: from -40ËšC to 85ËšC
- RF Connector: TNC
- Environmental: IP66 AND RoHS Compliant
- Attachment Method: 19 mm through hole mount
