Will Non-Terrestrial Networks (NTN) Change Offshore Wind Connectivity?

Offshore wind farms represent the frontier of clean energy, located far from shore where the winds are strongest and most consistent. However, these remote locations present significant challenges for connectivity.

While wired connections to wind farms are frequently in place, integrating a wireless system alongside an existing wired connection for wind farms offers significant benefits, including easier sensor deployment, cost savings, and faster data acquisition.

Indeed, according to Turbit, a dedicated wireless SCADA network enhances data resilience, security, and transmission speed, allowing near real-time updates that can boost output by up to 5%.

Wireless Networking Options for Offshore Wind Farms

Adding a wireless network, though, isn’t always straightforward. If your wind farm is within 12 nautical miles of the mainland, you can use appropriately secured 4G/LTE. Over 12 miles, and you’re looking at either a private cellular network, or a satellite-enabled Low Power Wide Area Network (LPWAN).

Private cellular networks, although very cost-effective once set up, are expensive and time-consuming to get started with. A more agile option is to explore LPWAN technologies, and this is where the advent of standards-based networks has the potential to unlock new applications.

To start with, the current options for setting up an LPWAN for your offshore wind farm (this also applies to the Offshore Support Vessels, USVs and buoys that support your operation) are:

2. Individually connect your sensors to a satellite IoT transceiver to form a satellite LPWAN.

So, network engineers have a choice: commit the time, effort and money to build a LoRa network paired with a single satellite IoT transceiver, and enjoy long-term low costs. Or, accept that the operating expenditure will be higher, and move more quickly with a satellite LPWAN.

What we tend to find is that the selection depends on the number of sensors: if there are relatively few, engineers like the speed, ease and flexibility of a satellite LPWAN. If there are many, the long-term cost-saving benefits of a LoRa network coupled with a satellite transceiver win out.

But what if the cost of each satellite IoT transceiver was lower? This would mean that more sensors could be individually paired with a transceiver, while costs remained within budget.

Lower module costs is one of the benefits expected to materialize from 3GPP standards-based technology, so let’s get into it.

What is 3GPP?

3GPP (3rd Generation Partnership Project) is a global collaboration aimed at standardizing telecommunications infrastructure. Established in 1998, it ensures that developers worldwide follow a unified approach in cellular technology development. One of its key achievements, “Release 17” in 2021, introduced satellite connectivity into the mix.

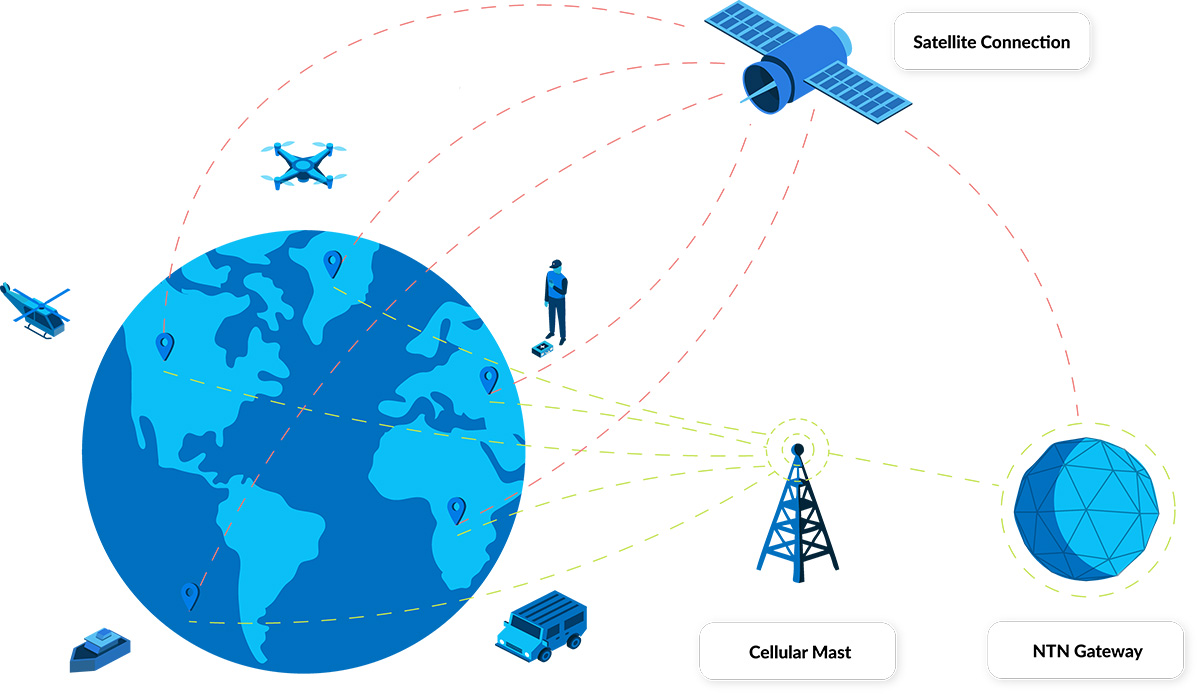

If a satellite network complies with 3GPP standards, a device – which could be a cellphone or an IoT device – equipped with a compatible 3GPP modem can seamlessly switch from cell tower coverage to satellite connectivity without any service interruption or the need for additional hardware. This is usually referred to as direct to cell (in the context of cellphones), or direct to device (in the context of everything else).

How Will 3GPP Standards-Based Technology Impact IoT Connectivity?

2. Supplier Switching

Today’s satellite-only modems each talk to a specific satellite network. The ST6100, for example, talks to Viasat’s geostationary satellites. RockBLOCK 9603 communicates with the Iridium Low Earth Orbit satellite constellation. GSatSolar talks to the Globalstar network. If you want to change your satellite network, you’ll need a new modem – these are proprietary systems.

Conversely, the 3GPP standards-based modems will, in principle, talk to any satellite network that’s 3GPP-compatible. Meaning you could switch your airtime supplier without needing to replace any hardware. This may have the effect of making airtime rates more predictable, as competition to retain customers’ business will force greater pricing transparency.

Which Satellite Networks Will Support 3GPP Standards-Based Modules?

In this context, it’s helpful to structure the satellite network operators (SNOs) into three ‘classes’:

2. Well-funded new constellations; chief among them Starlink.

Starlink’s best-known service is, of course, broadband internet for residential purposes. The satellites that serve these requirements are not the same as the satellites Starlink has launched since January 2024 to serve direct to cell.

The new Starlink direct to cell satellites are compatible with LTE devices back on Earth – specifically CAT-1, CAT-1 Bis, and CAT-4 modems – and service is expected at some point in 2025. Starlink does, however, have a challenge that the longer-established satellite network operators don’t have; it doesn’t have licensed radio spectrum. So Starlink partners with mobile network operators like T-Mobile in the USA and Optus in Australia to lease some of their licensed radio spectrum. Service is restricted to where these partnerships exist.

When Will Standards-Based Modems be Available?

Non-Terrestrial Network (NTN) NB-IoT modems are available now, but with limitations on coverage and bandwidth. The full promise of these advancements will be realized when there are multiple global providers, but there are issues to work out – for example, the power drain on a satellite that previously had 50,000 devices talking to it at any given time, now needing to move the data for 10, even 100 times, the number of devices.

There’s also the need for partnerships between the new satellite network and terrestrial network operators to establish global coverage – so we estimate that 2027 onwards is when we’ll see widespread adoption.

That said, as mentioned above, we’re already experiencing some of the benefits of this innovation, in that SNOs like Iridium and Viasat are set to both adopt the standards but more importantly enable their proprietary modems to be made by mass chip manufacturers, enabling price reductions from their scale.

So the shift, in some respects, is already here; you can more economically connect individual sensors using proprietary systems. As airtime and device pricing for standards-based modems becomes clearer in the coming years, you’ll have to make a choice about the best technology for your project; but the impact of standards on affordability is being felt today.

What are the Advantages of Proprietary Systems?

Proprietary systems – e.g. where an Iridium modem talks to an Iridium satellite only – are likely to remain, as they will retain advantages over standards-based systems.

“From a technical perspective, there is no definitive conclusion as to which protocol strategy is better – using proprietary systems, 3GPP standards, or other standards-based systems such as LoRa. All have their advantages and disadvantages.” – Analysys Mason

The main advantages of a proprietary system are capacity and reliability. As any cell phone user knows, when there’s a lot of traffic in the system, cell phone service slows down or even stops. Managing substantial additional demand through a finite number of solar-powered satellites is likely to present similar challenges. Conversely, licensed waveforms will not be overwhelmed by traffic, which means that when you need complete confidence that your data will be transmitted, in as close to real-time as possible, they’ll remain the preferred choice.

For Offshore Wind companies, and indeed in most cases, some data are more critical than others. You need to know if a turbine has developed a fault in real-time; but you may be able to wait a few hours to find out what your data buoys are reporting in the respect of location, wave height, temperature, salinity etc. You need to be able to communicate in real-time with a UAV / unmanned vessel, but you can probably cope with receiving data from your vibration sensors a couple of times a day.

How to Choose the Best Satellite IoT Network

This is where a trusted IoT connectivity partner comes in. Companies like Ground Control, who work with multiple satellite network operators and networking protocols, can help you choose the most appropriate solution based on data rates, criticality, security, device mobility, and location.

We are on the beta test programs for several standards-based modems, and we’re constantly exploring new partnerships from both standards-based and proprietary system providers. We test every modem in-house so we can provide our customers with objective, expert advice.

Satellite IoT is exploding with new choices; it’s our role to simplify those choices so that you benefit from the most cost-effective, easy to implement and reliable connectivity for your application.
